High-efficiency activated carbon filter for purification
- group name
- Supporting Equipment
- Min Order
- 1 set
- brand name
- HOMEKA Solutions for Activated Carbons & Resins
- model
- ACF-1.2m；ACF-2.4m；ACF-3.6m
- Nearest port for product export
- Shanghai, Qingdao, Ningbo, any required Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, DDU
- Acceptable payment methods
- T/T, L/C, D/P D/A
- update time
- Fri, 09 May 2025 22:15:31 GMT
Packging & Delivery
-
Min Order1 set
Briefing
A wide range of standard mobile filters type with adapted materials of construction for a wide range of applications.
Detailed
Activated Carbon Filter Description
● Simple, making installation and maintenance easy to operate.
● long service life and can continue to be used for an extended period of time with proper use and maintenance.
● The design of activated carbon filters is usually compact, taking up minimal space and suitable for installation in various environments.
Specification
|
Product Name
|
High-efficiency activated carbon filter for purification
|
|
Item number
|
HACF-1.2m，HACF-2.4m，HACF-3.6m
|
|
Design Pressure
|
＜0.6Mpa
|
|
Temperature
|
5~45℃
|
Filtration rate | 6~15m3/（m2·h） |
Backwashing intensity | 6~8L/m2·s |
Filling Height | 1.2~2.4m |
Filter material | Carbon steel or SS304 |
Function | Removal of organic contaminants
Adsorb heavy metal ions,colors, odors, colloids, and pigments.
Water purification |

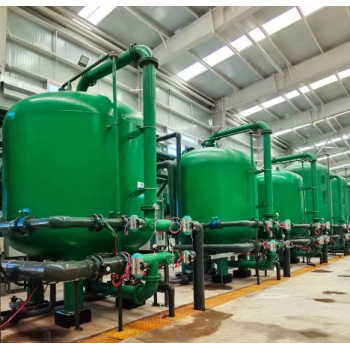

Activated Carbon Filter
The activated carbon filter is a device that uses the adsorption properties of activated carbon to purify water or air. It is primarily composed of activated carbon material, which has a highly developed pore structure and a large specific surface area, enabling it to effectively adsorb organic matter, chlorine, odors, colors in water, as well as harmful gases and odors in the air. Activated carbon filters are widely used in the treatment of drinking water for homes, industrial water treatment, air purification, and other fields, serving as an important means to improve water and air quality.
Homeka filter has the characteristics of high filtration efficiency, stable operation, and automated operation etc.
